Chapter 3: File Systems

Overview

This chapter explores the fundamentals of file systems in Unix-based operating systems, covering their structure, organization, and essential system calls. File systems are critical for data storage, retrieval, and management, providing a structured way to store and access files efficiently.

Key topics covered in this chapter include:

• File system structure and organization
• File attributes and metadata
• Directory hierarchy and navigation
• File system types in Unix
• How files are stored and accessed
• System calls for file operations
• File permissions and access control

File System Structure and Organization

A file system organizes data into files and directories, providing a hierarchical structure for efficient storage and retrieval. Unix file systems follow a tree-like structure, starting from the root directory (/).

Key Components of a File System:

• Files: The basic unit of storage, containing data or executable code.
• Directories: Containers that group files and other directories.
• Inodes: Data structures that store metadata about files.
• Superblock: Contains metadata about the file system, including its size and structure.
• Blocks: The smallest units of storage allocated for files.

File Attributes and Metadata

Each file in a Unix system has associated metadata stored in an inode. This metadata includes: - File type (regular file, directory, symbolic link, etc.) - Permissions (read, write, execute) - Owner and group - Size (in bytes) - Timestamps (creation, modification, and access times) - Number of hard links

Viewing File Metadata

To view file attributes, use the ls -l command:

ls -l myfile.txt

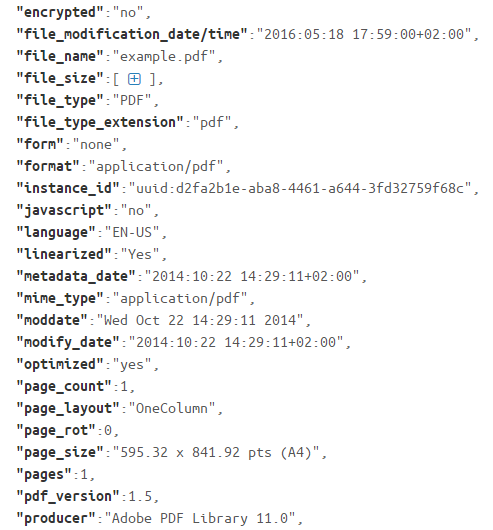

Example File Metadata:

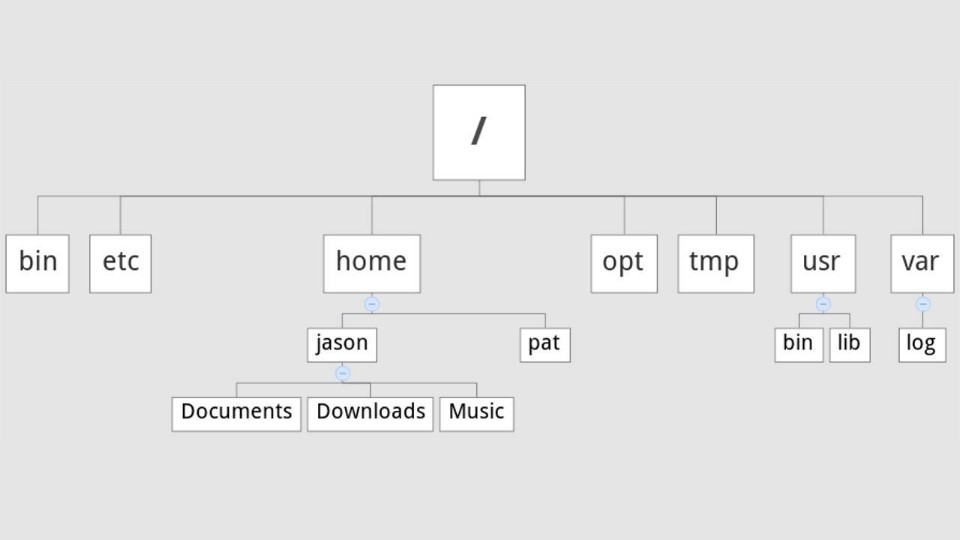

Directory Hierarchy and Navigation

Unix file systems follow a hierarchical structure with a single root directory (/).

Important Directories:

Directory	Description
/	Root directory, contains all files and directories
/home/	User home directories
/etc/	System configuration files
/var/	Log files, temporary storage
/tmp/	Temporary files
/dev/	Device files
/mnt/	Mounted file systems

Navigation Commands:

cd /home/user   # Change directory
ls -l           # List directory contents
pwd             # Print current working directory
mkdir newdir    # Create a new directory
rmdir olddir    # Remove an empty directory

How Files Are Stored and Accessed

Files in a Unix system are stored in blocks on a physical or virtual storage device. The file system manages how these blocks are allocated and retrieved.

File Storage Process

1. File Creation: When a file is created, an inode is assigned to store metadata.
2. Data Storage: The actual file contents are divided into blocks and stored in available disk space.
3. Indexing with Inodes: The inode maintains a list of pointers to the blocks containing the file’s data.

Accessing Files

When a file is accessed, the file system:

1. Locates the inode using the directory structure.
2. Reads the inode metadata to retrieve block locations.
3. Retrieves the blocks and reconstructs the file contents.

Interactive MicroSim

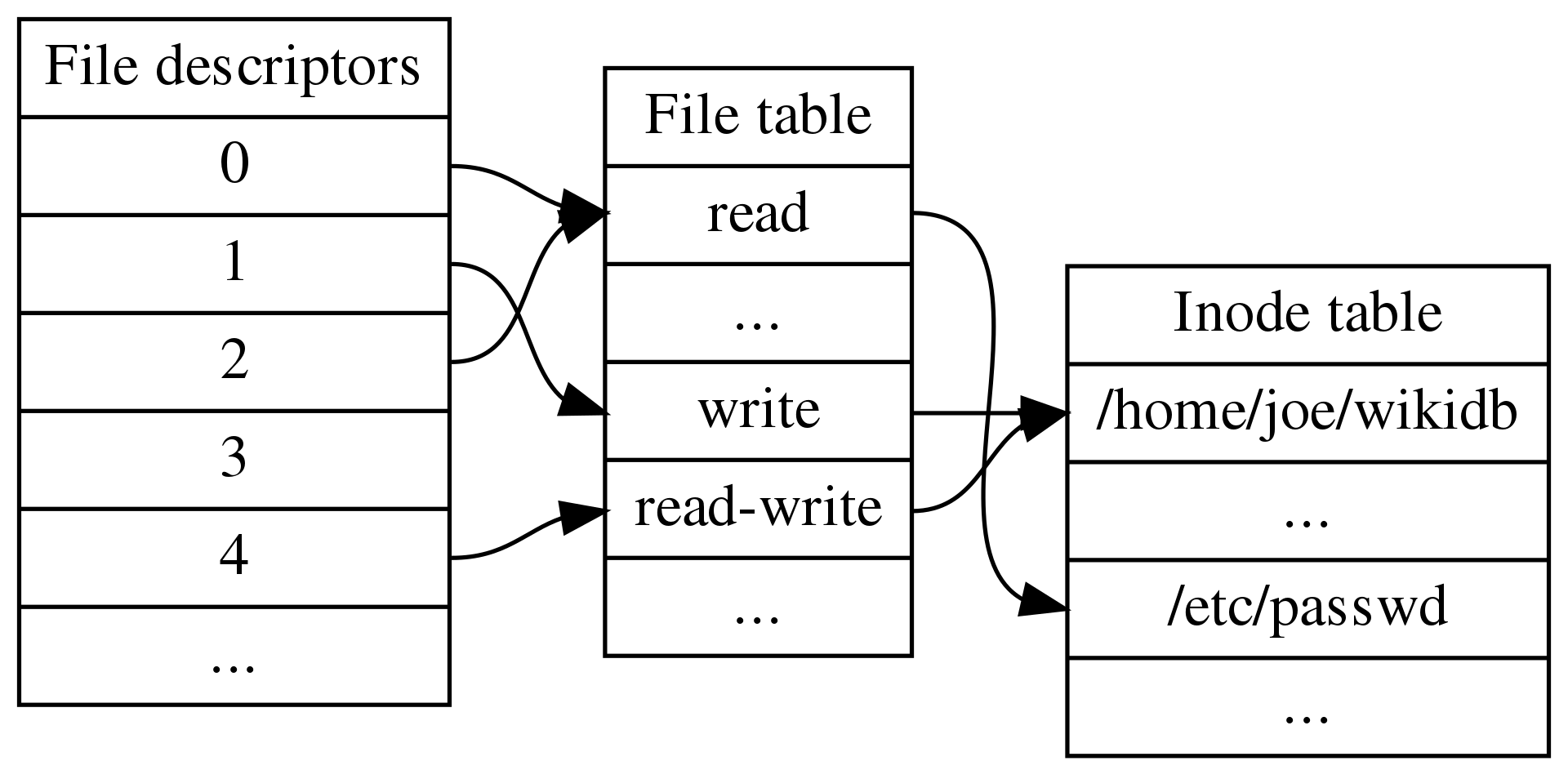

Explore how file descriptors, the open file table, and the inode table work together with this interactive MicroSim:

👉 Launch the File Access MicroSim

File System Types in Unix

Unix supports multiple file system types, each optimized for different use cases:

• Ext4 – Default Linux file system with journaling support.
• XFS – High-performance file system for large-scale storage.
• ZFS – Advanced file system with built-in volume management.
• NFS – Network File System for remote file sharing.
• tmpfs – In-memory file system for temporary storage.

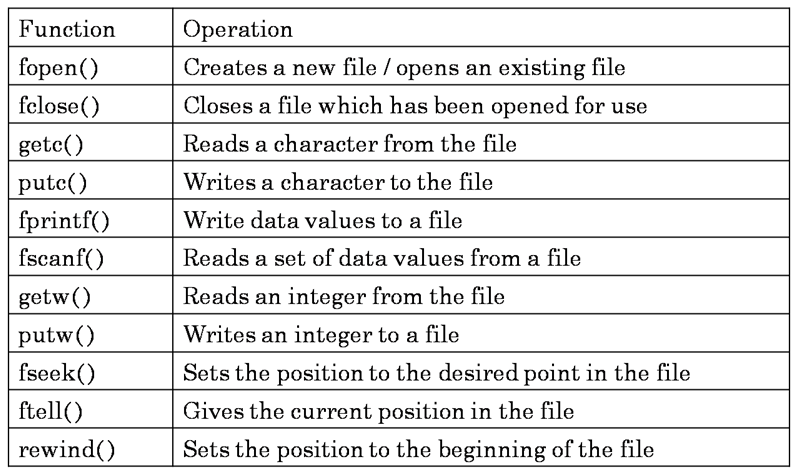

System Calls for File Operations

Unix provides system calls for direct file manipulation:

• open(): Opens a file and returns a file descriptor.
• read(): Reads data from a file descriptor.
• write(): Writes data to a file descriptor.
• close(): Closes an open file descriptor.
• stat(): Retrieves file metadata.

Example: Reading a File

#include <fcntl.h>
#include <unistd.h>
#include <stdio.h>

int main() {
    char buffer[100];
    int fd = open("file.txt", O_RDONLY);
    if (fd < 0) {
        perror("Error opening file");
        return 1;
    }
    read(fd, buffer, sizeof(buffer));
    write(1, buffer, sizeof(buffer));
    close(fd);
    return 0;
}

File Permissions and Access Control

Unix uses a permission model to control access to files and directories. Each file has three permission sets:

• User (Owner)
• Group
• Others

Permissions are represented using rwx notation:

• r (read) – View file contents
• w (write) – Modify file contents
• x (execute) – Run a file as a program

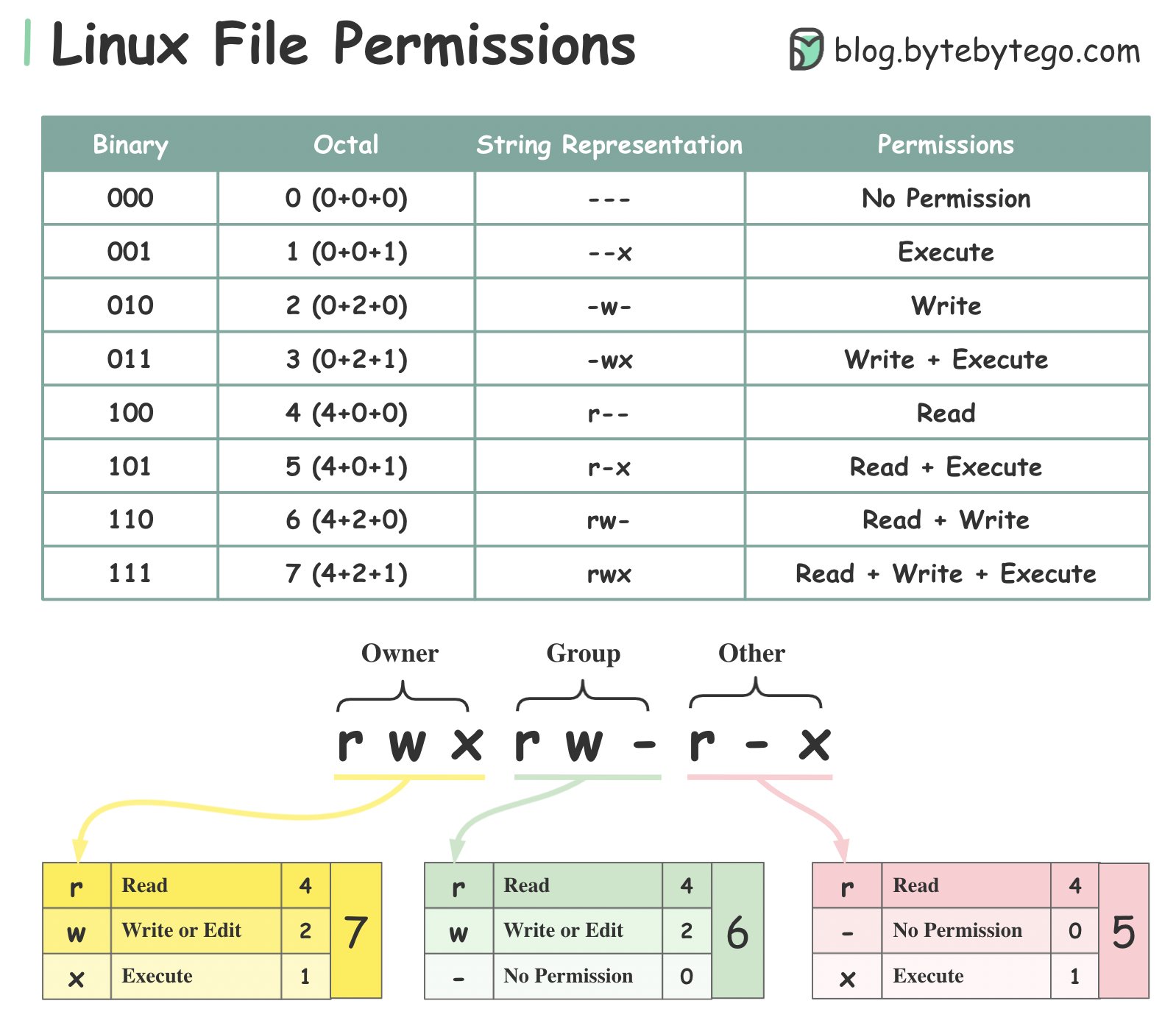

Viewing and Modifying Permissions

ls -l myfile.txt   # View file permissions
chmod 755 myfile.txt   # Change permissions
chown user:group myfile.txt   # Change file owner and group

Interactive Quiz

Test your knowledge of file systems:

1. What command is used to display file metadata?

   A. ls -l
   B. cat
   C. rm


   Show Answer

   The correct answer is A. The ls -l command lists detailed file information, including permissions, owner, and size.

2. Which of the following is NOT a valid Unix file system type?

   A. Ext4
   B. FAT32
   C. XFS


   Show Answer

   The correct answer is B. FAT32 is a Windows file system, not commonly used in Unix systems.

3. What does the chmod 755 myfile.txt command do?

   A. Grants full permissions to the owner and read/execute permissions to others
   B. Deletes the file
   C. Moves the file to another directory


   Show Answer

   The correct answer is A. chmod 755 allows the owner full access (rwx) and read/execute access (r-x) for others.

Summary

• Unix file systems store files using blocks and inodes.
• Metadata is stored separately in inodes.
• The Unix file system follows a hierarchical directory structure.
• File permissions protect data integrity and security.

Understanding file systems is crucial for managing data efficiently. The next chapter will cover Virtual Memory and its role in memory management.

---

This chapter is based on material from "Advanced Programming in the UNIX Environment, Third Edition, by W. Richard Stevens and Stephen A. Rago, 2013."
